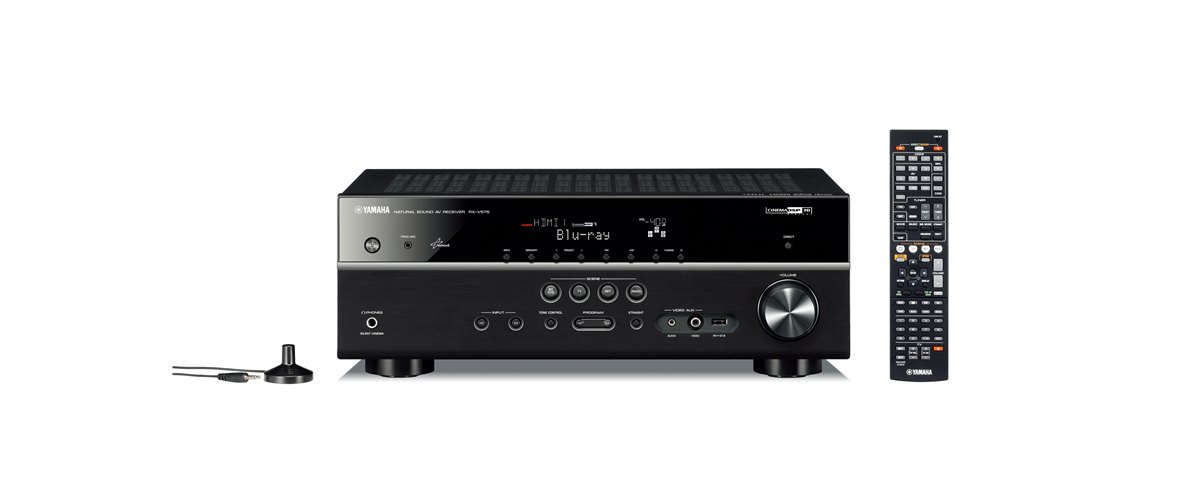

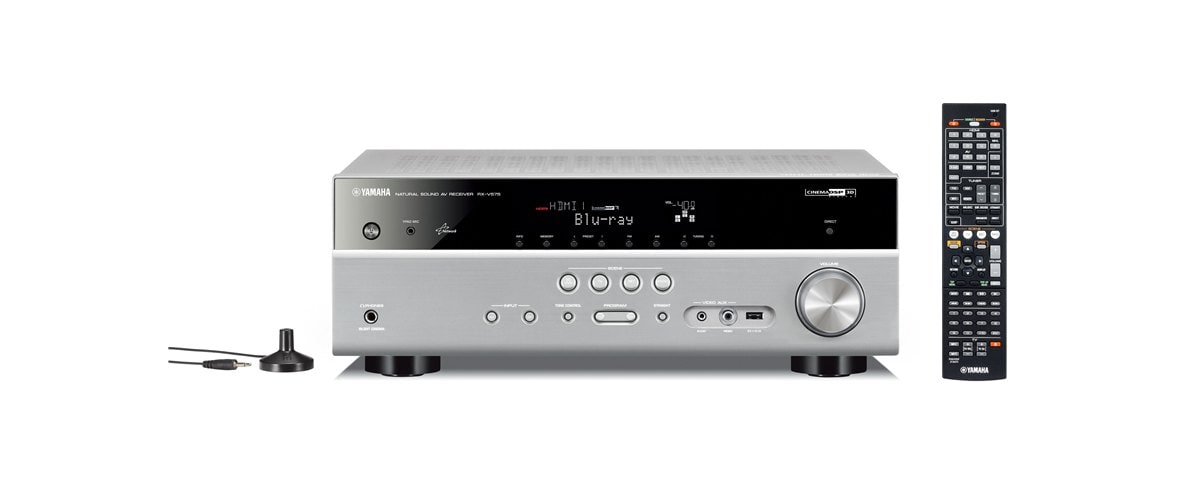

| AV Receiver |
| Amplifier Section |
Channel |
7.2 |
| Rated Output Power (1kHz, 1ch driven) |
115W (8ohms, 0.9% THD) |
| Rated Output Power (20Hz-20kHz, 2ch driven) |
80W (8ohms, 0.09% THD) |
| Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) |
135W (6ohms, 10% THD) |
| Dynamic Power per Channel (8/6/4/2 ohms) |
-/120/140/170W |
| Surround Sound Processing |
CINEMA DSP |
Yes (3D) |
| DSP Programs |
17 |
| Virtual Presence Speaker |
Yes |
| SILENT CINEMA / Virtual CINEMA DSP |
Yes |
| Dolby TrueHD |
Yes |
| Dolby Digital Plus |
Yes |
| Dolby Pro Logic IIx |
Yes |
| DTS-HD Master Audio |
Yes |
| Audio Features |
Compressed Music Enhancer |
Yes |
| YPAO sound optimization |
Yes |
| Adaptive DRC (Dynamic Range Control) |
Yes |
| Initial Volume & Maximum Volume Setting |
Yes |
| Bi-amp capability |
Yes |
| Audio Delay |
Yes (0-250 ms) |
| 192kHz/24-bit DACs for all channels |
Yes (Burr-Brown) |
| Video Features |
4K Ultra HD Pass-through |
Yes |
| HDMI 3D passthrough |
Yes |
| HDMI Audio Return Channel |
Yes |
| Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync |
Yes |
| Extensive Connection |
HDMI Input/Output |
5 / 1 |
| HDMI CEC |
Yes (SCENE, Device Control) |
| MHL Support |
Yes |
| USB Input |
iPod/iPhone/iPad, USB Memory, Portable Audio Player |
| Network Port |
Yes |
| AirPlay |
Yes |
| Front AV Input |
USB/Mini Jack/Composite |
| DC Out |
Yes |
| Digital Audio Input/Output: Optical |
2 / 0 |
| Digital Audio Input/Output: Coaxial |
2 / 0 |
| Analog Audio Input/Output |
4 (front 1) / 1 |
| Component Video Input/Output |
2 / 1 |
| Composite Video Input/Output |
5 (front 1) / 1 |
| Preout |
SW (2 x mono) |
| Headphone Output |
1 |
| Tuner Section |
FM/AM Tuner |
Yes |
| User Interface |
On-screen display |
Yes |
| SCENE |
SCENE (4 sets) |
| App Control |
Yes (iPhone/iPad/Android phone/tablet) |
| Remote Control Unit |
Yes (Preset) |
| Zone Control |
Zone B Output |
Yes (Speaker B) |
| General |
Standby Power Consumption (IR only) |
≤0.1W |
| Auto Power Standby |
Yes |
| ECO mode |
Yes |
| Dimensions (W x H x D) |
435 x 161 x 315 mm; 17-1/8” x 6-3/8” x 12-3/8” |
| Weight |
8.2 kg; 18.1 lbs. |
