Following only 4 steps, you can estimate the required number of speakers in an optimal way for your project.
Gamme de produits
VXS3F / VXS3FWEnceinte acoustique de grave
Couleurs / Finitions

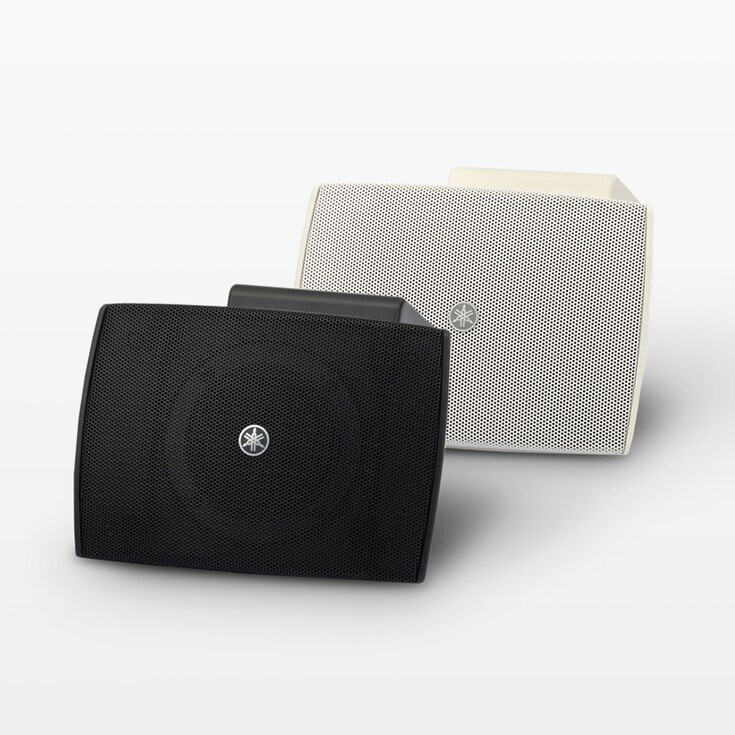

Compact surface-mount speakers elegantly blend into any interior décor (Low-impedance models)
- 3.5” full-range speaker units
- Low-impedance model for small installations
- Attractive, discreet design complements elegant décor
- Dedicated design-enhancing bracket included
- Acoustic design for sophisticated, natural reproduction
- Individual speakers cover a wide angle
- Paintable enclosures and grilles
- Black and white models available
- 1.1kg (2.4 lbs)*, W 184mm x H 130mm x D 134 mm (W 7.3" x H 5.1" x D 5.3")* *Including bracket
VXS3FT / VXS3FTWEnceinte acoustique de grave
Couleurs / Finitions

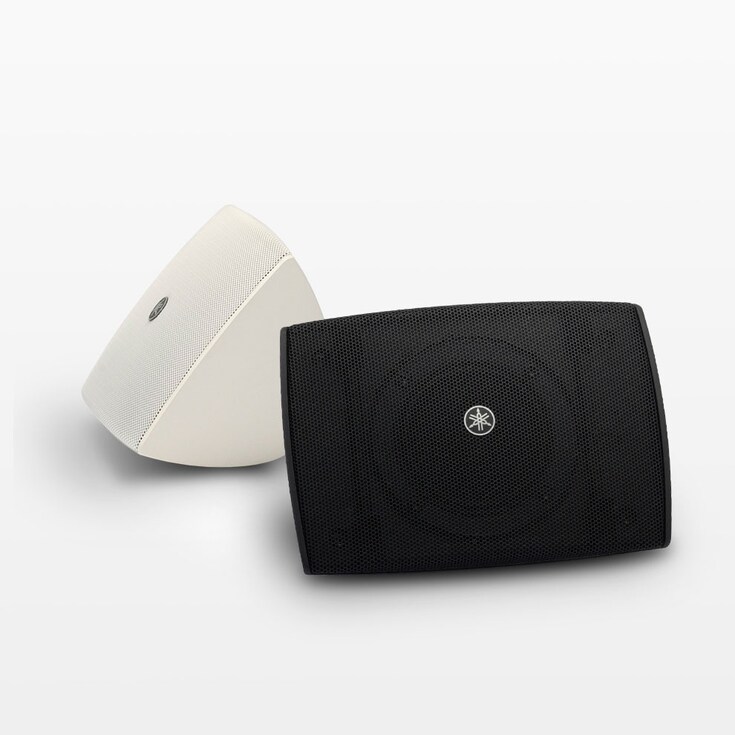

Compact surface-mount speakers elegantly blend into any interior décor (High-impedance models)
- 3.5” full-range speaker units
- High-impedance model for large installations
- Attractive, discreet design complements elegant décor
- Supplied bracket with dedicated transformer complements the overall design
- Acoustic design for sophisticated, natural reproduction
- Individual speakers cover a wide angle
- Paintable enclosures and grilles
- Black and white models available
- 1.7kg (3.7 lbs)*, W 184mm x H 178mm x D 139 mm (W 7.3" x H 7.0" x D 5.5")* *Including bracket
Fonctionnalités
Style et substance
Les enceintes murales jouent un rôle actif tant dans l’atmosphère visuelle que sonore. Les lignes élégantes et séduisantes des enceintes Yamaha VXS3F facilitent l’intégration dans n’importe quel environnement recherchant un complément sonore subtil à l’architecture du lieu. Leurs performances sont tout aussi impressionnantes : elles sont conçues autour d’un haut-parleur spécifiquement optimisé pour une diffusion musicale de haute qualité et une esthétique douce et intuitive. Ces enceintes assurent à tous, de l’installateur au propriétaire, en passant par les utilisateurs finaux – une solution simple et directe permettant d’intégrer facilement un son de haute qualité dans des restaurants, commerces ou environnements professionnels d’une impressionnante diversité. En alliant ce look subtil et séduisant à une stricte attention portée à la qualité sonore, pour laquelle Yamaha jouit d’une renommée mondiale, les enceintes murales VXS3F et VXS3FT prouvent que style et substance ne sont pas forcément incompatibles.

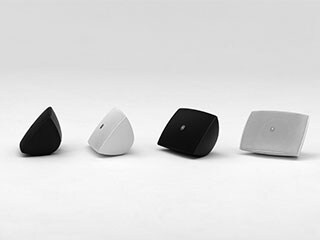

Un look séduisant et discret pour les lieux élégants
The polished presence of the VXS3F or VXS3FT can add stylish appeal to any environment. These speakers present a slim installed profile that appears to float in space, blending easily with just about any décor. The size of the speaker enclosure has been reduced as much as possible, while smoothly flowing lines and surfaces add visual charisma.
Un son naturel et sophistiqué
The VXS3F and VXS3FT deliver refined, naturally pleasing sound. In order to provide richly expressive music playback even at low volume, Yamaha has applied years of accumulated skill and experience in tuning the system for the most natural reproduction of musical instruments as well as human voices. Careful selection of the highest quality drivers and components also elevates overall quality.

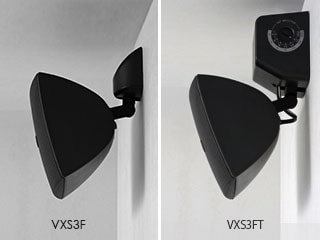

Choisissez le modèle qui répond à vos besoins
The VXS3F and VXS3FT are designed to deliver the same outstanding performance in different installed settings*. The VXS3F is ideal for smaller installations such as retail stores where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. The VXS3FT is preferred when a large number of speakers will be required to cover an expansive or complex area. Connection taps allow volume (output watts) to be adjusted after installation for added flexibility. * The VXS3F and VXS3FT feature the same enclosure, but are supplied with different mounting brackets.
Le commentaire du concepteur
The compact VXS3F and VXS3FT feature an elegantly sculpted exterior design that visually expresses the outstanding quality and clarity of their sound. Gracefully flowing curves from rear to front represent the directness of the sound, while the triangular cross section makes optimum use of the space between walls and ceiling for seamless, efficient installation. With a design that creates the illusion of floating gently in space rather than appearing as a mechanical “unit” attached to a surface as an afterthought, these speakers are ideal for owners and proprietors who want to provide the highest sound quality without disrupting their interior décor.- Takenori OMACHI, Yamaha Design Laboratory -
-
Yamaha Design "Synapses"
Yamaha Design "Synapses" expresses our design passion, through the conceptual keywords organically connecting whole Yamaha product design.
Systèmes
Exemple système 1 : Café
The VXS3F (Low-impedance model) is ideal for smaller installations such as retail stores where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. The MA2030 is a stylish mixer amplifier that can be easily used without any prior audio experience. All you need to get started is the MA2030, VXS3F speakers, and a music source of your choosing. You can add a microphone for announcements and small events if necessary, easily broadening the scope of your business.
Exemple système 2 : Restaurant
The VXS3FT (High-impedance model) is preferred when a large number of speakers will be required to cover an expansive or complex area. Connection taps allow volume (output power) to be adjusted after installation for added flexibility. With VXS series F models and a mixer amplifier MA2030, it is possible to create a streamlined, high-performance system that allows microphone use while BGM is being played, for example. Add a power amplifier such as the PA2030 for zoning capability.

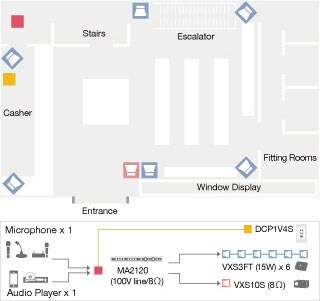

Exemple système 3 : Magasin
The combination of VXS3F/VXS3FT speakers and VXS10S/VXS10ST subwoofers is recommended to enhance the power and excitement of rhythmic music. A single unit of MA2120, which has independently controllable two output channels, would be a good choice for broadcasting announcements or advertisements while supplying background music. It allows users to create a comfortable, agreeable environment by carefully adjusting the output volume of each channel. The DCP1V4S control panel installed in the area allow remote control of background music volume and other operations.
Liens connexes
Logiciel associé
Informations connexes
Produits connexes
Solutions connexes
Actualités
* Les spécifications sont susceptibles d'être modifiées sans préavis. Les couleurs et les finitions présentées peuvent différer de celles des produits réels.
