YAS-109 How to setup ARC (Audio Return Channel)

Dernière mise à jour: 15-11-2019

YAS-109 ARC (Audio Return Channel)

1. Connect the HDMI Out (ARC) of the Yamaha to the ARC connection on the TV.

   *On the back of the TV one of the HDMI connection may be labeled ‘ARC’.

2. Factory reset the Yamaha sound bar.

   * On the YAS-109 the factory reset (initialize) is done using the buttons on the unit itself, not the remote.

   A. Power the unit OFF.

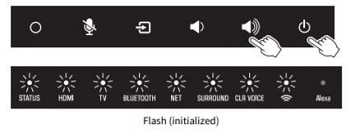

   B. Press and hold the [VOLUME+]and [POWER] buttons until all the light flash on the unit. The Alexa indicator will not flash.



   * This will reset the sound bar.

3. Check the setup menu of the TV to verify that ARC (HDMI CEC Control) is enabled.
