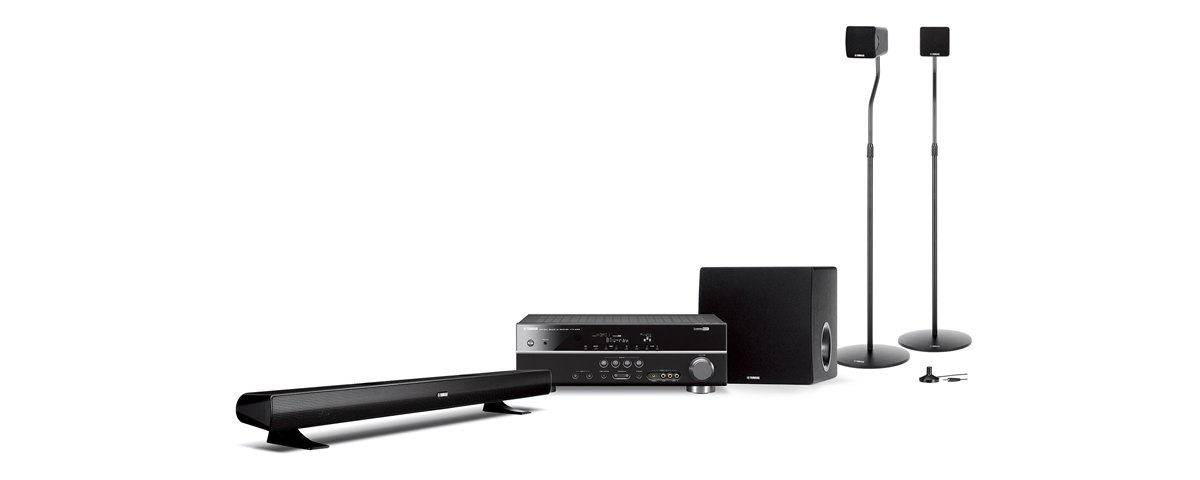

| HTiB |
| Canal |
5.1-channel |
| Total System Power |
700 W |
| Receiver |
Maximum Output Power |
120 W x 5 (4 ohms, 1 kHz, 0.7% THD For Europe) |
| Minimum RMS Output Power |
100 W x 5 (6 ohms, 1 kHz, 0.9% THD) |
| Dynamic Power/Channel (8/6/4/2 ohms) |
105/130/150 W (6/4/2 ohms) |
| SCENE |
Yes |
| Front Panel Mini Jack Input |
Yes |
| YPAO Sound Optimiｚation |
Yes |
| Amplificateur de musique compressée |
Yes |
| DRC (« Dynamic Range Control » (commande de portée dynamique)) adaptatif |
Yes |
| HDMI Input / Output |
4 / 1 |
| Entrée audio numérique (optique/coaxiale) |
4 (2 / 2) |
| 192kHz/24-Bit DACs |
Yes (All channels) |
| Surround Programs |
17 |
| HDMI Interface |
V.1.4a with 3D |
| Tuner |
FM/AM |
| Distorsion harmonique totale |
0.06% (1 kHz, 50 W/8 ohms) |
| Signal-to-Noise Ratio (250 mV) |
98 dB (250 mV) |
| Consommation électrique en veille |
0.5 W |
| Dimensions (L × H × P) |
435 x 151 x 315 mm |
| Poids |
7.5 kg |
| Speaker System |
System Frequency Response |
30 Hz-20 kHz |
| Impédance |
6 ohms |
| Enceinte avant |
Type |
Acoustic suspension (including centre speaker) |
| Haut-parleurs |
4cm x 10cm cone x 3 (including centre speaker) |
| Dimensions (L × H × P) |
800 x 50 x 70 mm |
| Poids |
1.5 kg |
| Enceinte ambiophonique |
Type |
Acoustic suspension |
| Haut-parleurs |
6.5cm cone full-range driver |
| Puissance d’alimentation (nominale/maximale) |
30 W / 80 W |
| Sensibilité |
81 dB/2.83 V/1 m |
| Dimensions (L × H × P) |
90 x 120 x 123 mm (with stand); 90 x 90 x 109 mm (without stand) |
| Poids |
0.51 kg/unit (with stand) |
| Caisson de basse |
Type |
Advanced YST with Linear Port |
| Puissance de sortie |
100 W |
| Haut-parleur |
16cm cone |
| Dimensions (L × H × P) |
262 x 264 x 316 mm |
| Poids |
6.9 kg |
