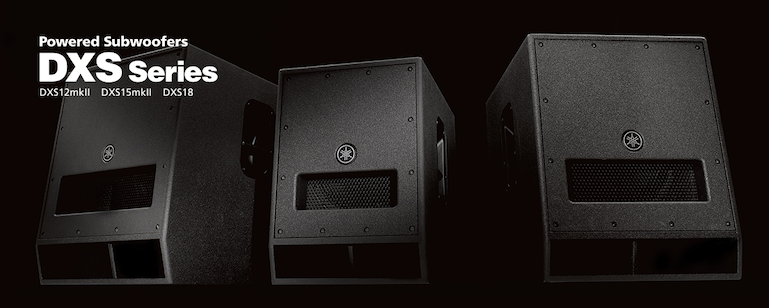

Gamme de produits
DXS18Caisson de basses 18"
Le DXS18 offre le meilleur niveau de pression sonore de sa catégorie (jusqu’à 136 dB SPL) et la bande passante dans le grave la plus étendue de la gamme (32 Hz). Son coffret est de type passe-bande; son boomer de 46 cm (18 pouces) de grande puissance possède une bobine mobile de 4 pouces de diamètre et un aimant surdimensionné. Son amplificateur travaillant en Classe D délivre 1020W, avec une clarté et une précision exceptionnelles.

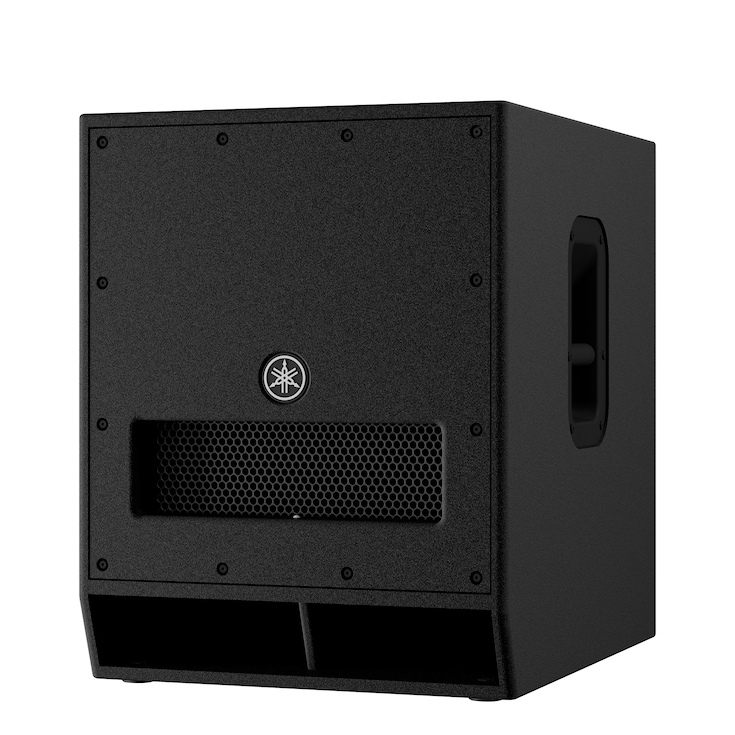

DXS15mkII15” Powered Subwoofer
The new DXS15mkII capable of producing tight, thunderous low frequencies as low as 40Hz and a maximum SPL of 135dB, this updated model's optimized band-pass design and state-of-the-art DSP ensure the extremely high power output is focused, powerful, and distortion-free.
- 15" powered subwoofer with 1020W class-D power amplifier
- High-output 15" woofer with a band-pass design cabinet for superior bass response and a maximum 135dB SPL
- 40Hz-150Hz frequency range is ideal for small- to medium-sized rooms
- Built-in D-XSUB processing allows you to extend the frequency response even lower
- Plywood cabinet is durable and acoustically optimized for maximum sound quality
- Cardioid mode for bass management onstage
- Selectable X-OVER (80/100/120 Hz)
- M20 and Ø35 mm dual pole sockets
- Optional Speaker Wheels (SPW-1) and Speaker Cover(SPCVR-DXS152)

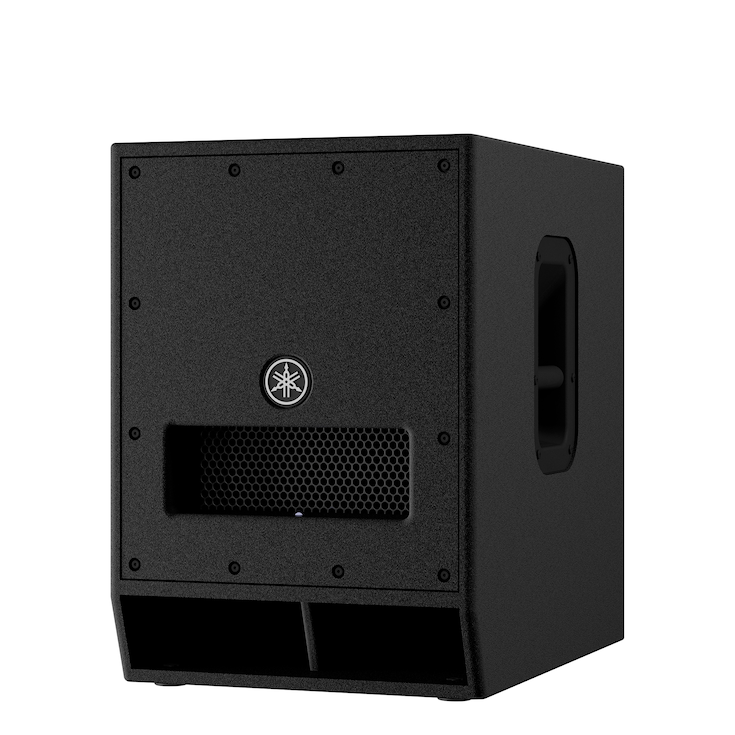

DXS12mkII12” Powered Subwoofer
For smaller venues or temporary sound reinforcement setups that require serious power with a professional edge, look no further than this compact powerhouse. The new DXS12mkII is equipped with an upgraded 1020W power amplifier producing an impressive 134dB and reaching as low as 42Hz producing clean, clear, heart-stopping bass that defies its lightweight construction. Try selecting our D-XSUB “BOOST” or “XTENDED LF” low frequency processing settings, turn up the volume, and watch the eyes widen and jaws drop. All this in a small, easy to install enclosure. Listeners will need to search for the source of this much low frequency performance.
- 12" powered subwoofer with 1020W class-D power amplifier
- High-output 12” woofer with a band-pass design cabinet for superb bass response with a maximum 134dB SPL
- 42Hz-150Hz frequency range is ideal for small to medium-sized applications
- Built-in D-XSUB processing allows you to extend the frequency response even lower
- Plywood cabinet is durable and acoustically optimized for minimal distortion
- Cardioid mode for bass management onstage
- Selectable X-OVER (80/100/120 Hz)
- M20 and Ø35 mm dual pole sockets
- Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS122)
DXS15Caisson de grave actif 15”
Le caisson de grave DXS15 utilise un nouveau dessin de type "band-pass" qui procure un niveau SPL impressionnant tout en réduisant drastiquement la distorsion. Ce caisson embarque un boomer de haute puissance avec un amortissement supérieur, produisant un son très clair et précis, grâce à un amplificateur classe D de 950W. Yamaha a intégré une technologie DSP pour assurer un accird de haute précision avec les enceinte médium/aigu. Le traitement D-XSUB généré par le DSP dispose de trois modes : NORMAL, BOOST ou XTENDED LF. Le mode NORMAL procure une réponse parfaite en fréquences graves, le mode BOOST augmente en niveau la réponse en grave et le mode XTENDED LF étend dans le bas du spectre la réponse en fréquence.

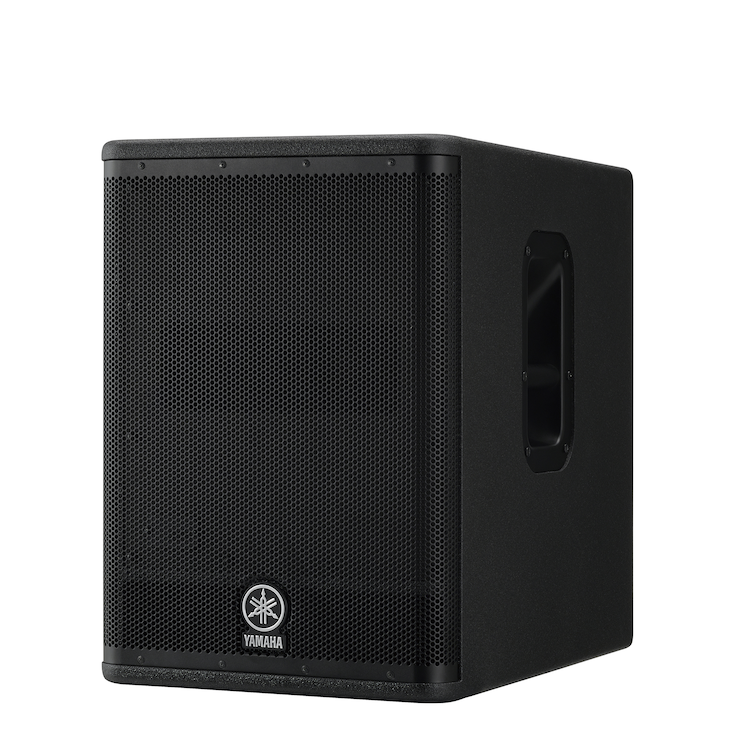

DXS12Caisson de grave actif 12”
Le caisson de grave DXS12 utlise un nouveau dessin de type "band-pass" qui procure un niveau SPL impressionnant tout en réduisant drastiquement la distorsion. Ce caisson embarque un boomer de haute puissance avec un amortissement supérieur, produisant un son très clair et précis, grâce à un amplificateur classe D de 950W. Yamaha a intégré une technologie DSP pour assurer un accord de haute précision avec les enceintes médium/aigu. Le traitement D-XSUB généré par le DSP dispose de trois modes : NORMAL, BOOST ou XTENDED LF. Le mode NORMAL procure une réponse parfaite en fréquences graves, le mode BOOST augmente en niveau la réponse en grave et le mode XTENDED LF étend dans le bas du spectre la réponse en fréquence.
Fonctionnalités
GRAVE. BASS. PERFORMANCE.
L'excellent son des basses parle de lui-même. Période.
Si vous aimez que vos basses soient proéminentes et puissantes, les caissons de basse alimentés à haut rendement de la série DXS vous permettront d'entendre clairement et distinctement les sons les plus graves. Dotés d'amplificateurs de classe D à haut rendement et d'un woofer personnalisé logé dans un boîtier passe-bande en contreplaqué robuste, les subwoofers DXS sont capables de délivrer jusqu'à une impressionnante puissance de 1020 W sans distorsion avec une clarté suprême. La gamme comprend le célèbre DXS18 et les versions récemment mises à niveau des modèles 15" et 12", le DXS15mkII et le DXS12mkII, qui ont adopté les technologies et les caractéristiques du DXS18 pour un avantage professionnel supplémentaire et une augmentation des performances. Ils sont tous dotés du DSP de pointe de Yamaha, de fonctions de protection et d'un contrôle flexible du crossover, ce qui permet une compatibilité parfaite avec la vaste gamme d'enceintes Yamaha et une gestion fiable de vos graves. Nous avons travaillé sans relâche pour développer des subwoofers avec ce niveau de polyvalence, de fiabilité et de puissance, car pour Yamaha, les basses sont une affaire sérieuse. Faites-en aussi votre affaire.
-

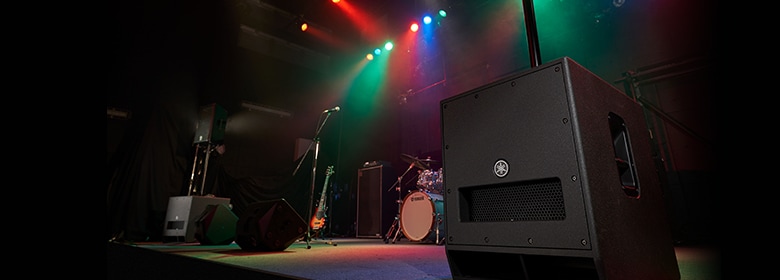

Feel the Power
DXS Series were made for audio engineers and bass fanatics who demand consistent high-quality sound for their live performances or DJ events— even when it's cranked to the maximum SPL.
-

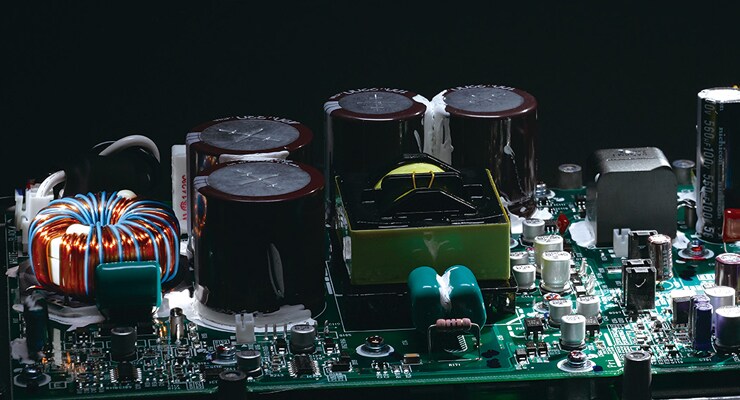

High-Efficiency 1020W Class-D Amplifiers
The DXS’s high-performance Class-D amplifier is capable of producing up to 1020W of power, and a maximum SPL of 136dB, delivered with exceptional clarity and accuracy. Both the DXS15mkII and DXS12mkII can produce 3dB more SPL than previous models.
-

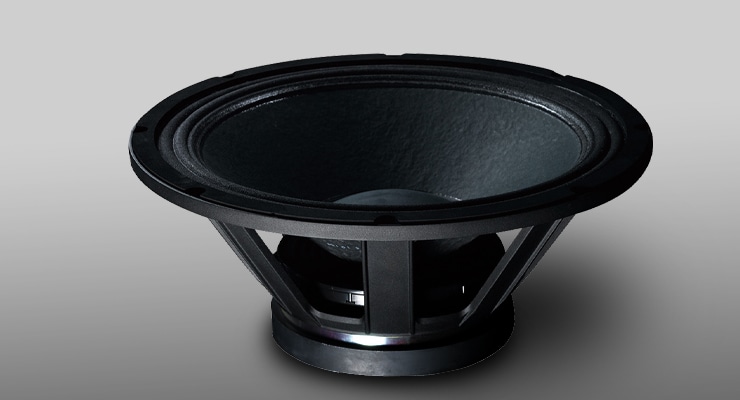

Custom Designed Transducer
The high-output woofer of DXS18 features a 4" voice coil magnet and delivers powerful, well-defined, low-frequency bass with minimal distortion. The DXS12mkII and DXS15mkII both feature 2.5" voice coil magnets.
-
Band-Pass Type Enclosure
All DXS Series enclosures incorporate a band-pass design to reduce unwanted vibrations and noise that could otherwise sabotage your sound. We've also designed a very durable plywood enclosure which, when combined with the band-pass configuration, tested better than the traditional bass-reflex design and reduced distortion considerably, making it possible to achieve a higher SPL.
-
Durable, Portable, and Road-Ready.
Ergonomic and compatible features just made your system setup and transport a whole lot easier.
Rugged coating for superior protection
Enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.

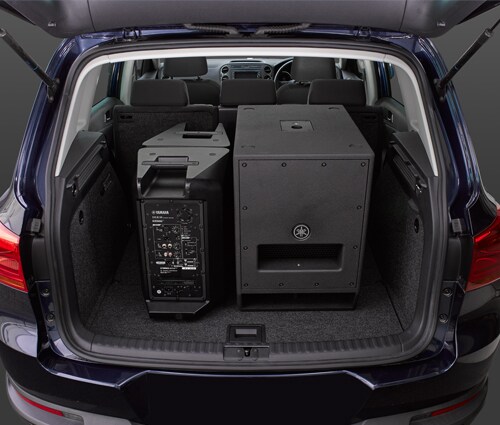

Compact and portable design enclosure
Just as impressive as the high output at their disposal is the compact portability and lightweight construction that houses the DXS Series' awesome power. The DXSmkII models in particular have shed 2kg and 3kg compared to their 15” and 12” predecessors respectively, making it easier than ever to load up, set up, or tear down your PA.
-

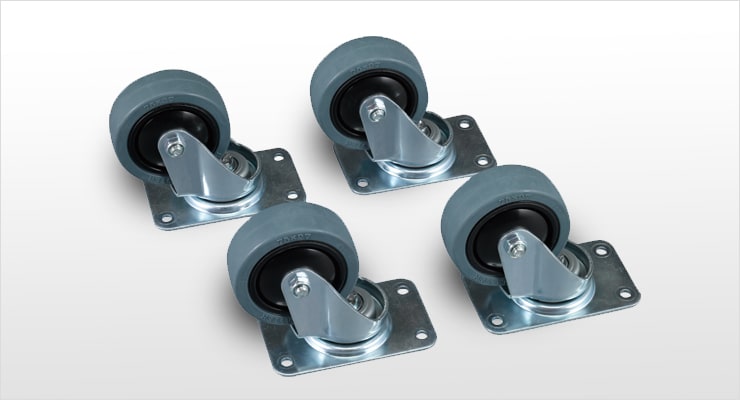

Optional Wheel Kit
For more fast and convenient setup of your DXS subwoofers, optional wheels are available, featuring radial ball bearings that ensure smooth running and a rattle-free performance.
-

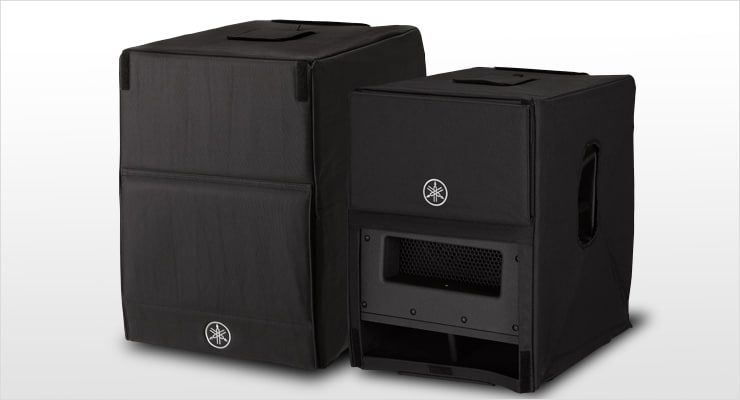

Optional Speaker Cover
The functional speaker covers that protect your speakers from unfavorable weather conditions during operation in outdoor performances, and in dusty and dirty warehouse storage, or the rigors of equipment transport on the road. Trilaminar polyester fabric with an inner cushion protect from impacts. Slits allow easy access to the handles for carriage.
*NOTE: The covers do NOT guarantee waterproof protection.
-

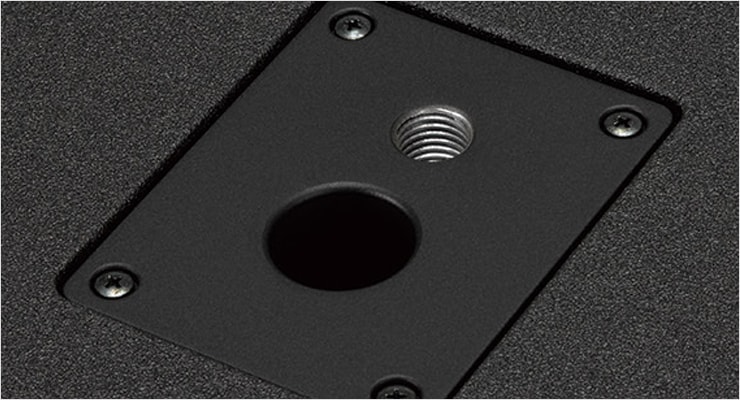

Dual pole socket
For additional flexibility configuring your speakers, the DXS series comes equipped with a dual pole socket that accommodates both 35mm diameter speaker poles and M20 screws.
-
You Have Assumed Control
With all this power at your disposal it's a comfort to have Yamaha's own innovative DSP and control options to ensure your performances are executed exactly as you planned.

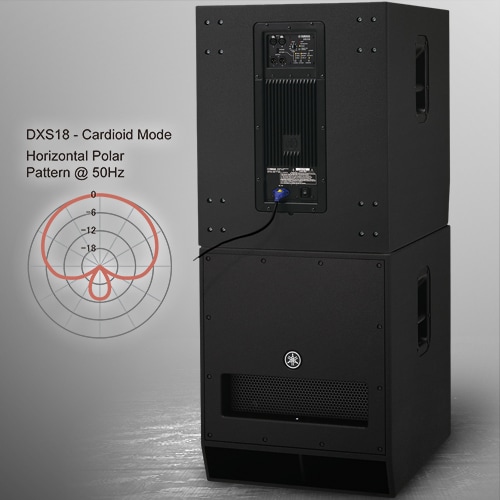

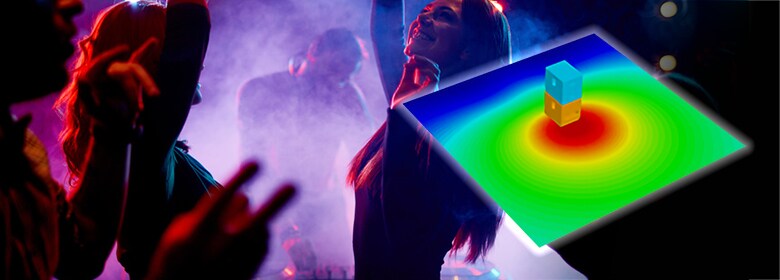

Cardioid Mode
Because low frequencies can be omnidirectional, controlling the output directivity of a system’s bottom end can be a challenge, with the sound pressure hitting the stage often being equal to that of its intended FOH audience. For setups consisting of two or more DXS subwoofers, selecting the newly developed Cardioid Mode effectively decreases stage-side sound pressure while increasing the bottom-end output directed towards the audience, resulting in a cleaner stage monitoring environment and a more pronounced bass experience for the audience.

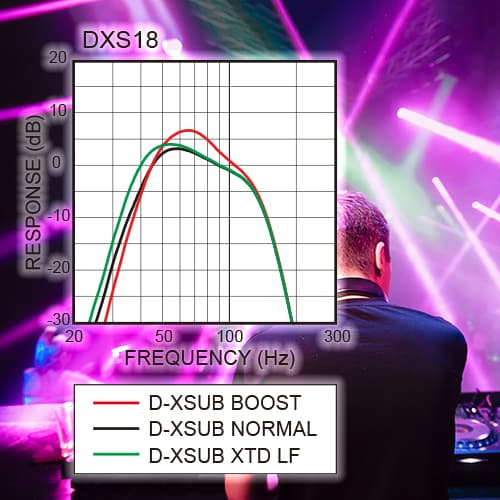

D-XSUB Bass Processing
Powerful D-XSUB processing gives you total control of your low frequency. NORMAL mode gives you the ideally balanced low-frequency response, while BOOST mode provides a tighter and more focused bass. XTENDED LF mode drops the low-end frequencies down even further for thunderous bottom end that delivers a low frequency extension unheard of from smaller cabinets. Take your full-range system to the next level with the power and versatility of DXS Series active subwoofers.

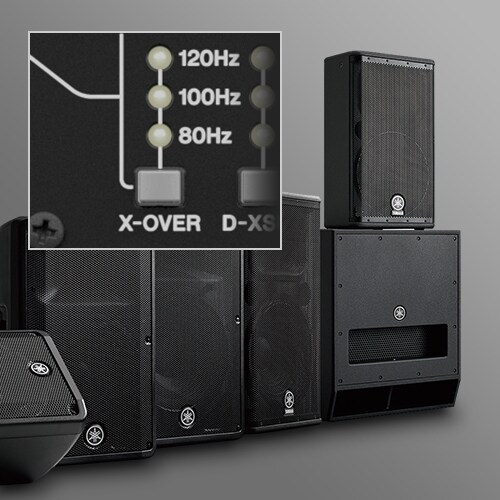

Selectable X-OVER(80/100/120Hz)
Crossover switching allows users to seamlessly match DXS subwoofers with any of Yamaha’s full-range powered speakers by selecting the cutoff frequency best suited to the models in their speaker array (up to 120Hz).
Systèmes
Band Performance
Mobile DJing
Band Performance Mid-size
Band Performance with Cardioid Mode
Options
Functional Speaker Cover
The functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road.
*NOTE: The covers do NOT guarantee water-drip protection.

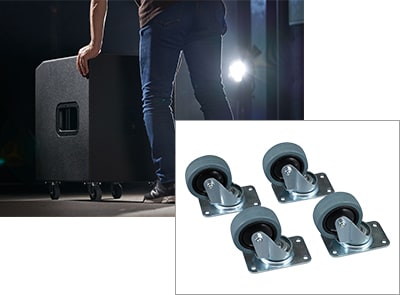

Optional Wheel Kit (SPW-1)
For more fast and convenient setup of your DXS XLF / CXS XLF series and DXS series subwoofers, optional casters are available, featuring radial ball bearings that ensure quiet during your performance.
